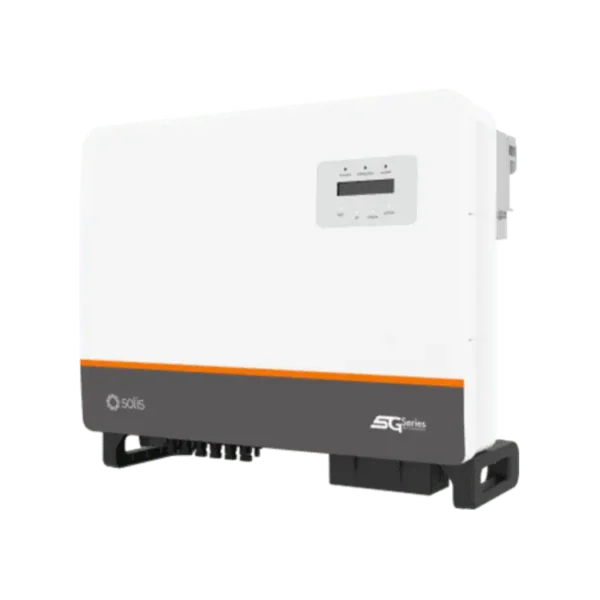

Solis 60 kW S5 three-phase network inverter 6 MPPT

Solis 60 kW S5 three-phase grid-tie inverter, 6 MPPT, DC, PID(S5-GC60K) Technical parameters
DC input
Recommended maximum input power – 60 kW
Maximum input voltage – 1100 V
Rated voltage – 600 V
Starting voltage – 195 V
MPPT voltage range – 180-1000 V
Max. Input current – 6*32A
Max. short-circuit current – 6*40 A
Number of MPPTs / Max. number of inputs per MPPT – 6/12
Output AC current
Rated output power – 60 kW
Max. total output power – 66 kVA
Max.

Output power – 66 kW
Rated mains voltage – 3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated mains frequency – 50 Hz / 60 Hz
Rated mains output current – 91.2 A / 86.6 A
Max. output current – 100.3 A Power factor – 0.5
>0.99 (from -0.8 to +0.8) THDi –
<3% Efficiency Maximum efficiency – 98.7% European efficiency – 98.3% Protection Reverse polarity DC protection – Yes Short circuit protection – Yes Overcurrent protection – Yes Overvoltage protection – Type II DC/ Type II AC Network monitoring – Yes Islanding protection – Yes Temperature protection – Yes Built-in AFCI module 2.0 – Optional Built-in PID Recovery function – Optional Built-in DC disconnector -Yes General Data Dimensions (W * H * D) – 691*578*338 mm Weight – 53.7 kg Topology – Without transformer Self-consumption (night) –

<1 W Ambient operating temperature range – -25 ~ +60C; Relative humidity – 0-100% IP protection – IP66 Noise level (typical) – 55 dB(A) Cooling type – Intelligent speed control fan Maximum installation height – 4000 m Network connection standard – G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 /UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530 Safety / EMC standard – IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4 Functions DC connection – MC4 connector AC connection – OT terminal Screen – LCD display, capacitive touch buttons Communication – RS485, Optional: Wi-Fi, GPRS
